Retrofit Emission Control Device
Platino Premium Retrofit Emission Control Device® for Diesel Generators, Marine Engines and Earth Moving Equipments
- The Platino Retrofit Device is perfect for your diesel generators, reducing particulate matter (PM), Carbon Monoxide (CO) and Hydrocarbon (HC)
- Our CPCB type-approved emission control solution ensures reliable and efficient environmental compliance for our customers
- Our experienced engineers with proven skills and qualifications develop the RECD® / RATS® to meet the highest standards.
Emission Control Norms (CPCB)
Stringent Emissions Regulations and Challenges
CPCB website from time to time by one of the four Central Pollution Control Board, Govt of India, recognized /approved laboratories as given below:
- Automotive Research Association of India, Pune (Maharashtra)
- International Centre for Automotive Technology, Manesar (Haryana)
- Indian Institute of Petroleum, Dehradun (Uttarakhand)
- Vehicle Research and Development Establishment, Ahmednagar (Maharashtra)
5-Mode Constant Speed Cycle (D2 Steady-state discrete mode test cycle specified in ISO-8178)
Particulate matter emission from DG sets needs to be reduced by 70% from the existing emission level of the DG set
Why Emission Control Matters
A Global Health Crisis in the Air
The Hidden Impact of Industrial and Vehicle Emissions
Smarter Solutions for Cleaner Air
Technology That Filters Harmful Emissions
Our Retrofit Emission Control Devices reduce particulate matter and pollutants, enhancing air quality and fighting climate change.
Cleaner Engines. Greener Tomorrow.
Our Diesel Engines and Engineering Services also help lower emissions and support a sustainable future.
By prioritising emission control, Platino is not just adhering to regulations but is actively working towards a cleaner, healthier planet for all.
Advantages of Platino’s RECD / RATS ®
Type Approved RECD for the following capacity ranges of DG Sets
| Kw | Kva | Type | Testing Agency | Test Status |
|---|---|---|---|---|
| 18.4 to 61.6 | 23 to 77 | CPCB-II (Phase = II) | ICAT | Completed |
| 62.5 to 125 | 78 to 156 | CPCB-I (Phase = I) | ICAT | Completed |
| 62.5 to 128 | 78 to 160 | CPCB-II (Phase = II) | ICAT | Completed |
| 183 | 200 | CPCB-II (Phase = II) | ICAT | Completed |
| 228 to 250 | 250 to 312 | CPCB-II (Phase = II) | ARAI | Completed |
| 256 to 448 | 320 to 560 | CPCB-I (Phase = I) | ICAT | Completed |
| 256 to 438 | 320 to 500 | CPCB-II (Phase = II) | ICAT | Completed |
| 438 to 664 | 500 to 834 | CPCB-I (Phase = I) | ICAT | Completed |
| 480 to 707 | 600 to 883 | CPCB-II (Phase = II) | ICAT | Completed |
| 228 to 250 | 250 to 312 | CPCB-II (Phase = II) | ARAI | Completed |
| 256 to 438 | 320 to 500 | CPCB-II (Phase = II) | ICAT | Completed |
| 128 to 250 | 160 to 312 | CPCB-I (Phase = I) | ICAT | Completed |
RECD / RATS® Features
Our technology is tested under the required ISO 8178 5-mode D2 cycle from ARAI and ICAT.
- Global recognition and approval
- South India’s FIRST Type Approved RECD
- Zero back pressure, as verified by the ARAI Test Report
- Compliance with the latest CPCB norms, featuring an On-Board Diagnostic Panel (OBD) safety system
- Exceptional efficiency in PM reduction and a significant reduction in HC and CO
- Minimal maintenance
- Remote monitoring OBD Panel
- Major OME’s with Platino
- High Horse power DG Sets specialist ( upto 10MW )
- Compatibility with slow speed DG Set also
- Not using partial flow filter

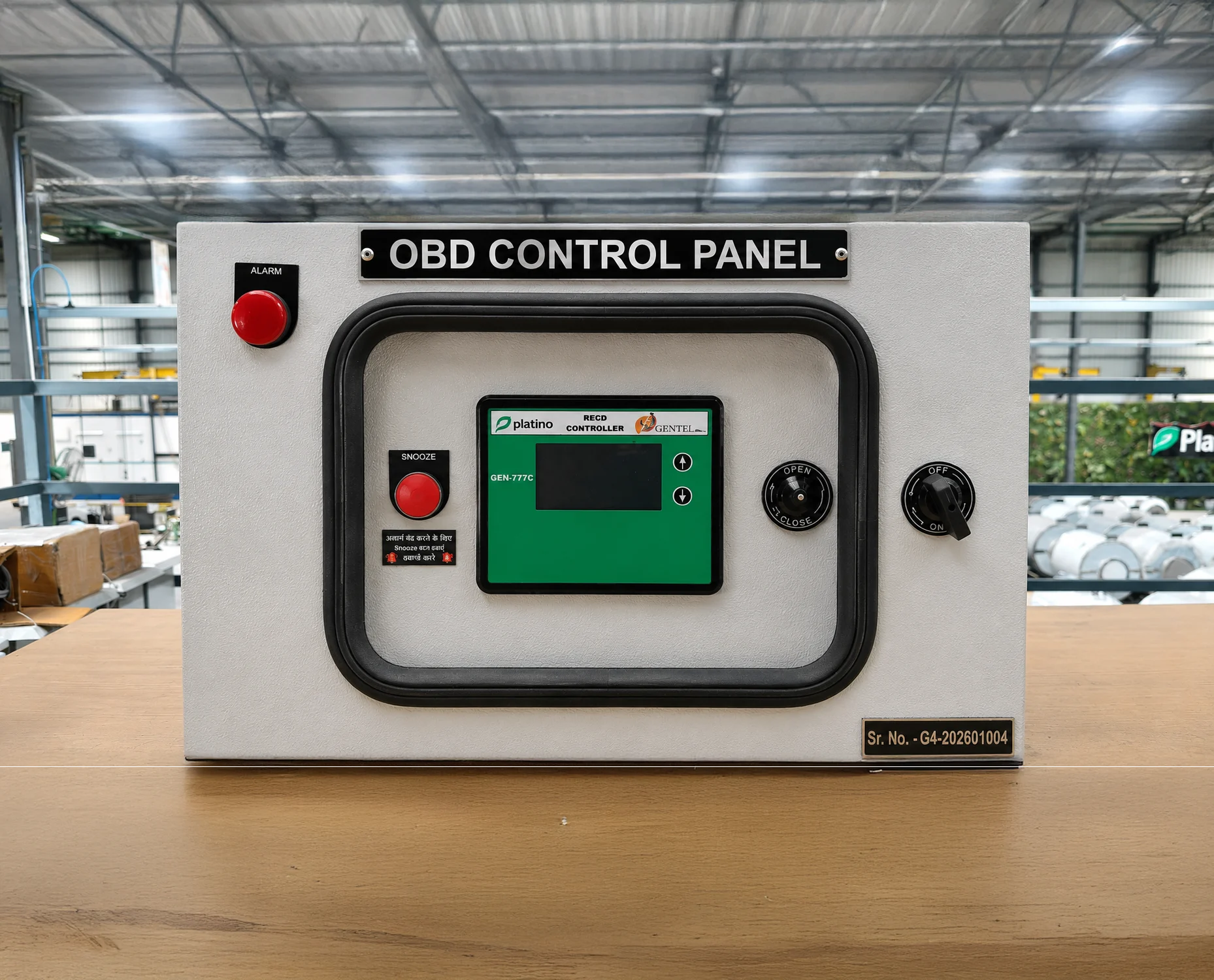

OBD (On-Board Diagnostics) Control Panel
The RECD OBD (On-Board Diagnostics) Panel is a specialized control and monitoring interface integrated with Retrofit Emission Control Devices for diesel generator (DG) sets. It enables real-time diagnostics, performance tracking and regulatory compliance verification—especially under CPCB norms for particulate matter (PM), CO and HC reduction.
-
Pressure & Temperature Sensors
Installed upstream and downstream of the RECD to monitor differential pressure and thermal behaviour. -
Data Acquisition Module
Captures sensor data and transmits it to the control panel or remote server. -
OBD-II Interface (or custom protocol)
Facilitates diagnostics and fault code retrieval, often customized for DG applications. -
IIoT Connectivity
Enables remote monitoring, data logging and predictive maintenance via cloud platforms. -
Display & Control Unit
May include LCD/LED indicators or touchscreens for local status visualization and manual overrides. -
Emission Monitoring
Tracks backpressure trends and temperature thresholds to ensure RECD health. -
Fault Detection & Alerts
Generates Diagnostic Trouble Codes (DTCs) for sensor failures, clogging, or abnormal operating conditions. -
Compliance Reporting
Supports CPCB-mandated data logging for audit trails and type approval testing. -
Remote Diagnostics
Through IIoT, stakeholders can access live data, historical trends and system health from any location. -
Integration with BMS/SCADA
Optional compatibility with broader building or plant management systems for centralized control. -
DG Sets with RECD (up to 800 kW)
Especially in non-attainment cities where CPCB mandates retrofitting for air quality improvement. -
Industrial & Commercial Facilities
Ensures emission compliance without disrupting operations. -
Field Testing & Validation
Useful during ARAI/ICAT certification and COP development tests. -
CPCB Type Approval
Panels must support RECD certified under CPCB Phase I & II norms.
Expertise in MW Engine Retrofitting
Platino Automotive Pvt Ltd specializes in advanced retrofitting solutions for Mega Watt (MW) diesel and gas engine applications, delivering high-performance emission control systems engineered for industrial reliability and environmental compliance.
Our expertise lies in integrating Retrofit Emission Control Devices (RECD) into existing engine exhaust systems with minimal modifications, ensuring seamless implementation, optimized performance and reduced operational downtime.
With extensive experience across power generation, industrial utilities, infrastructure and critical applications, we provide customized retrofit solutions designed to significantly reduce NOx, PM, CO and HC emissions while maintaining engine efficiency and exhaust flow performance.
Our MW Retrofitting Expertise Includes
- Retrofit solutions for Mega Watt diesel & gas engines
- Advanced RECD / Catalyst integration
- Low backpressure exhaust system design
- NOx and particulate emission reduction technologies
- Custom-engineered retrofit configurations
- Minimal downtime installation approach
- Compliance with CPCB and international emission norms
- Exhaust flow optimization and performance validation
- Durable industrial-grade catalyst systems
Specialised RECD Expertise for LDO DG Sets
Platino brings specialised expertise in developing RECD solutions for LDO-powered DG sets, combining deep generator knowledge with advanced emission-control engineering. Our solutions are designed around the operating conditions, capacity and installation requirements of each DG set to enable effective emission reduction without compromising dependable performance.
From system assessment and customised design to installation and ongoing service support, our experienced team delivers an integrated approach that helps businesses operate their existing LDO DG infrastructure more responsibly while meeting evolving emission-control requirements.
RECD = Below 800 Kw (1000 Kva) Reduce (PM, CO, HC)
APCD = Above 800 Kw (1000 Kva) Reduce (PM, CO, HC)
RATS =Above 800 Kw (Slow speed engine) HFO, LDO, LSHS (PM, CO, HC)
RNCD = NOx Control Device (NOx)
