RECD Power Generators
RECD Energy Generators
RECD Power Units

Platino Retrofit Emission Control Device for Diesel Generators, Marine Engines and Earth Moving Equipments

  • The Platino Retrofit Device is perfect for your diesel generators, reducing particulate matter (PM), Carbon Monoxide (CO), and Hydrocarbon (HC)
  • Our CPCB type-approved emission control solution ensures reliable and efficient environmental compliance for our customers
  • Our experienced engineers with proven skills and qualifications develop the RECD / RATS® to meet the highest standards.

Emission Control Norms (CPCB)

Stringent Emissions Regulations and Challenges

CPCB website from time to time by one of the four Central Pollution Control Board, Govt of India, recognized /approved laboratories as given below:

  • Automotive Research Association of India, Pune (Maharashtra)
  • International Centre for Automotive Technology, Manesar (Haryana)
  • Indian Institute of Petroleum, Dehradun (Uttarakhand)
  • Vehicle Research and Development Establishment, Ahmednagar (Maharashtra)

5-Mode Constant Speed Cycle (D2 Steady-state discrete mode test cycle specified in ISO-8178)

Particulate matter emission from DG sets needs to be reduced by 70% from the existing emission level of the DG set

RECD for dg set

Why Emission Control Matters

Air pollution causes around 7 million premature deaths annually, severely impacting health and the environment.
Emissions from industries and vehicles lead to respiratory and cardiovascular diseases, worsen air quality, and drive global warming.
Effective emission control is essential to address these challenges. Platino leads with technologies that cut harmful emissions.
Our Retrofit Emission Control Devices reduce particulate matter and pollutants, enhancing air quality and fighting climate change.
Our Diesel Engines and Engineering Services also help lower emissions and support a sustainable future.

By prioritising emission control, Platino is not just adhering to regulations but is actively working towards a cleaner, healthier planet for all.

Advantages of Platino’s RECD / RATS ®

Our Retrofit Emission Control Device are designed to keep up with the latest government standards for emissions.

The only RECD / RATS® manufacturer certified by ARAI and ICAT

Diesel Generator service experience background

Proven Zero back pressure, as per ARAI Certificate

Major OMEs & engine Manufactures tied up with us

3 in 1 Emission Devices (PM, HC & CO)

Type Approved RECD for the following capacity ranges of DG Sets

Kw Kva Type Testing Agency Test Status
18.4 to 61.6 23 to 77 CPCB-II   (Phase = II) ICAT Completed
62.5 to 125 78 to 156 CPCB-I   (Phase = I) ICAT Completed
62.5 to 128 78 to 160 CPCB-II   (Phase = II) ICAT Completed
183 200 CPCB-II   (Phase = II) ICAT Completed
228 to 250 250 to 312 CPCB-II   (Phase = II) ARAI Completed
256 to 448 320 to 560 CPCB-I   (Phase = I) ICAT Completed
256 to 438 320 to 500 CPCB-II   (Phase = II) ICAT Completed
438 to 664 500 to 834 CPCB-I   (Phase = I) ICAT Completed
480 to 707 600 to 883 CPCB-II   (Phase = II) ICAT Completed
228 to 250 250 to 312 CPCB-II   (Phase = II) ARAI Completed
256 to 438 320 to 500 CPCB-II   (Phase = II) ICAT Completed
128 to 250 160 to 312 CPCB-I   (Phase = I) ICAT Completed
RECD & RATS Features

RECD / RATS® Features

Our technology is tested under the required ISO 8178 5-mode D2 cycle from ARAI and ICAT.

  • Global recognition and approval
  • South India’s FIRST Type Approved RECD
  • Zero back pressure, as verified by the ARAI Test Report
  • Compliance with the latest CPCB norms, featuring an On-Board Diagnostic Panel (OBD) safety system
  • Exceptional efficiency in PM reduction and a significant reduction in HC and CO
  • Minimal maintenance
  • Remote monitoring OBD Panel
  • Major OME’s with Platino
  • High Horse power DG Sets specialist ( upto 10MW )
  • Compatibility with slow speed DG Set also
  • Not using partial flow filter

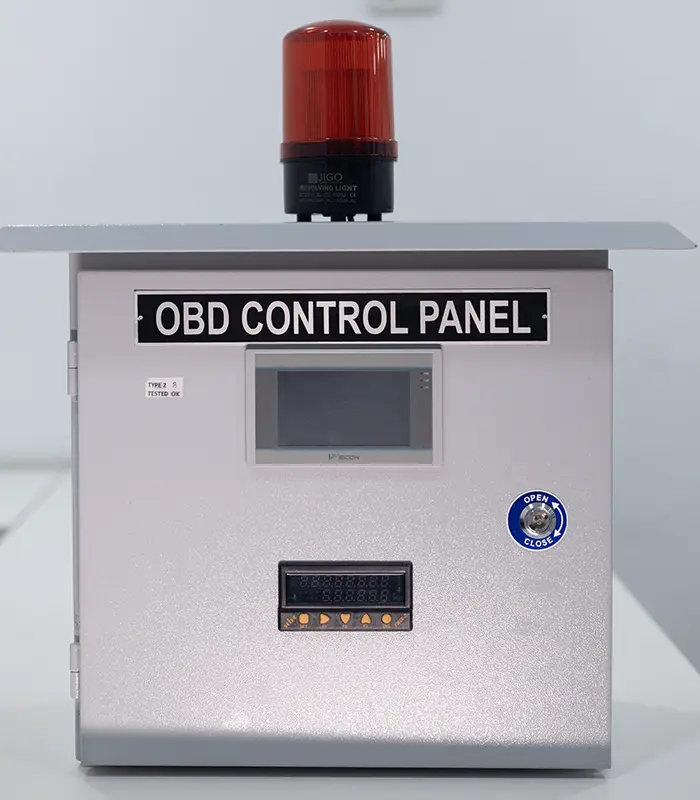

OBD (On-Board Diagnostics) Control Panel

The RECD OBD (On-Board Diagnostics) Panel is a specialized control and monitoring interface integrated with Retrofit Emission Control Devices for diesel generator (DG) sets. It enables real-time diagnostics, performance tracking, and regulatory compliance verification—especially under CPCB norms for particulate matter (PM), CO, and HC reduction.

  • Pressure & Temperature Sensors
    Installed upstream and downstream of the RECD to monitor differential pressure and thermal behaviour.
  • Data Acquisition Module
    Captures sensor data and transmits it to the control panel or remote server.
  • OBD-II Interface (or custom protocol)
    Facilitates diagnostics and fault code retrieval, often customized for DG applications.
  • IIoT Connectivity
    Enables remote monitoring, data logging, and predictive maintenance via cloud platforms.
  • Display & Control Unit
    May include LCD/LED indicators or touchscreens for local status visualization and manual overrides.
  • Emission Monitoring
    Tracks backpressure trends, and temperature thresholds to ensure RECD health.
  • Fault Detection & Alerts
    Generates Diagnostic Trouble Codes (DTCs) for sensor failures, clogging, or abnormal operating conditions.
  • Compliance Reporting
    Supports CPCB-mandated data logging for audit trails and type approval testing.
  • Remote Diagnostics
    Through IIoT, stakeholders can access live data, historical trends, and system health from any location.
  • Integration with BMS/SCADA
    Optional compatibility with broader building or plant management systems for centralized control.
  • DG Sets with RECDs (up to 800 kW)
    Especially in non-attainment cities where CPCB mandates retrofitting for air quality improvement.
  • Industrial & Commercial Facilities
    Ensures emission compliance without disrupting operations.
  • Field Testing & Validation
    Useful during ARAI/ICAT certification and COP development tests.
  • CPCB Type Approval
    Panels must support RECDs certified under CPCB Phase I & II norms.
